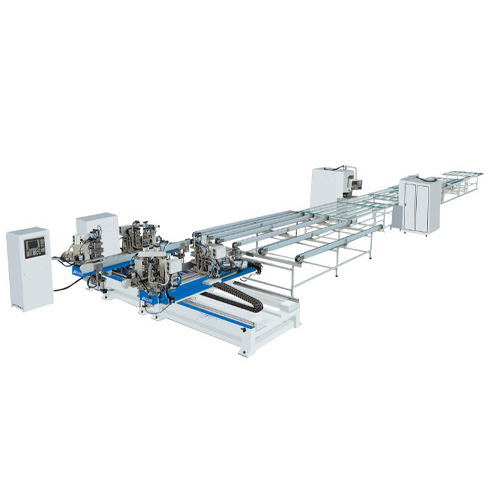

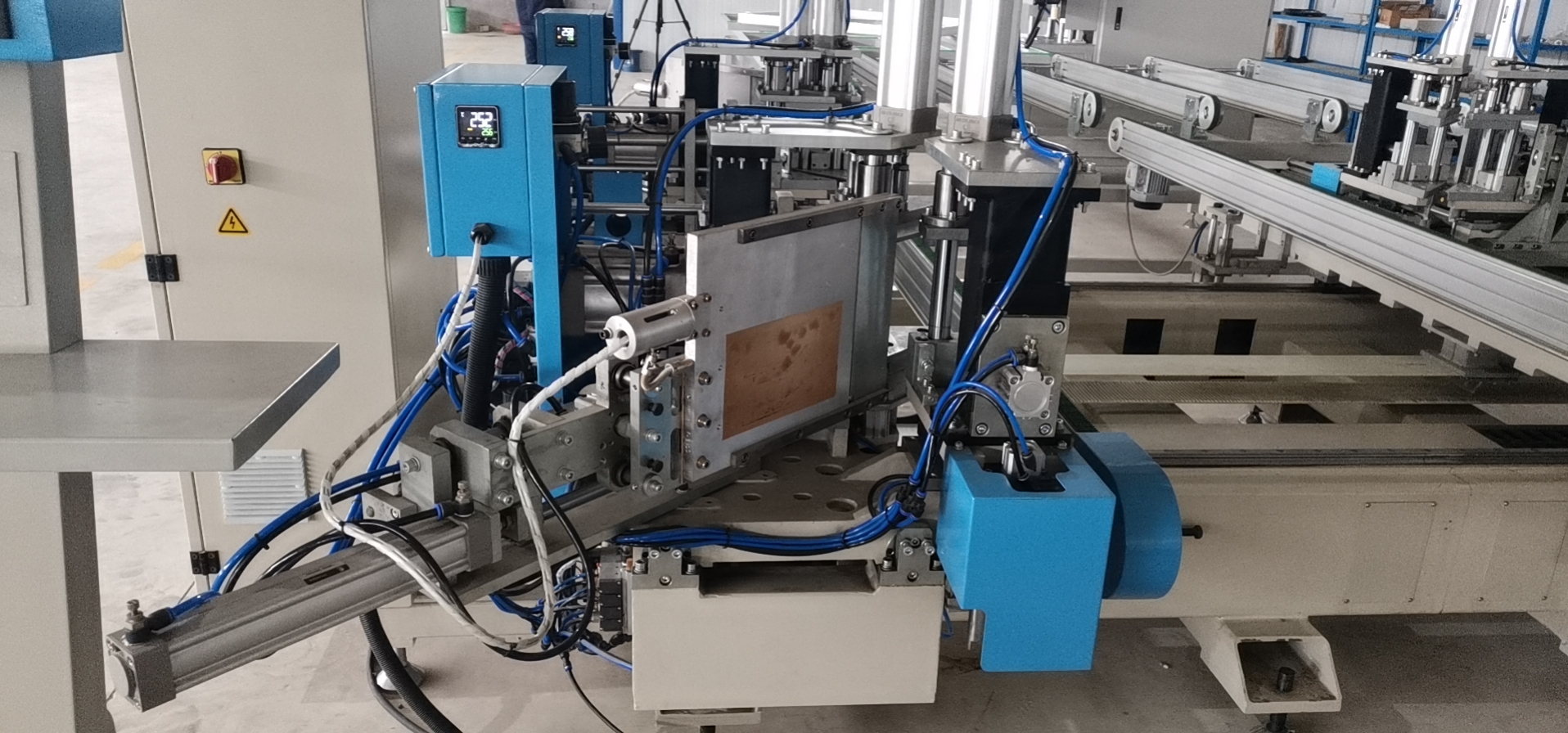

●Auto Four Corners Welding Unit:Features: 1.This machine is used for welding color and white PVC profiles.Including welding unit, transfer unit, and corner cleaning part.
2.The machine lathe adopts horizontal design, easy to operate, and adopts high rigidity steel, machine working stable.
3.The machine heads adopts square guide rails, precision is high.
4. This line can save at least 3 workers, improve production at least 3 times than normal model
5. Adopts Imported CNC control system, and Schneider electrical components, machine performance is stable
6. Automatic positioning, welding, transfer , with high efficiency.
7.Convenient design to change welding plate.
Parameters
| Voltage |
380V/50HZ |
| Power |
10KW |
| Working Pressure |
0.5-0.8Mpa |
| Max.Welding Size |
2600mmx3200mm |
| Min.Welding Size |
500mmx650mm |
| Welding Height |
20-120mm |
| Welding Width |
120mm |
| Transfer Speed |
30m/min |
| Dimension |
5200×5000×1600mm |
●CNC Corner Cleaning Unit: Features:
1.This machine adopts inner positioning design, to guarantee corner cleaning precision.
2.One time can clean internal/external corner, and surface/seal rubber seam with high efficiency.
3.The machine can store different programs of profiles data, easy to use.
4.With two axis CNC control system.

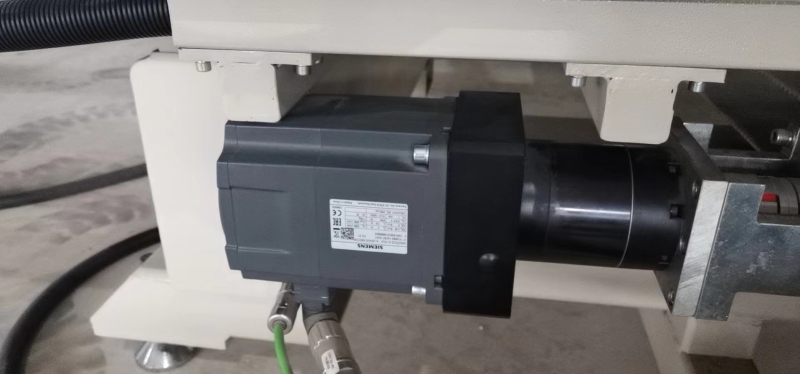

5.It adopts servo motor to drive, the main parts adopts imported brand, machine performance is stable.
Parameters
| Voltage |
380V/50HZ |
| Power |
1.4KW |
| Working Pressure |
0.5-0.8Mpa |
| Rotary Speed |
2880rpm/min |
| Welding Height |
30-120mm |
| Welding Width |
120mm |
| Dimension |
1570×2670×2070mm |
●Transfer Unit:
Automatic transfer the welding frame to the corner cleaning unit
