PVC Window Double Heads Seamless Welding Machine

1. This Machine can weld both color and white PVC profiles

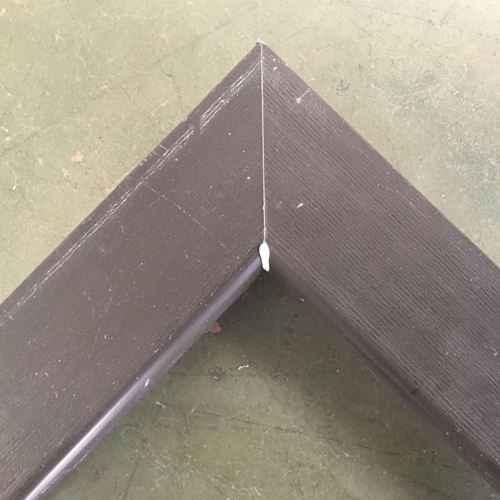

2.Welding seam is only 0.2mm
  • Model: SHWA2-100x2500
  • Description

    Features



    1.The machine is made up of 2 machine heads, machine frame, electric control tank and material supporting fame etc.

    2.Can weld and clean the corner at one time. Specially for the colored profile.

    3.There are fixing mechanism, pressing mechanism, heating mechanism and head box etc. on machine head.

    4.The machine is used for PVC window and door welding processing; it can achieve the whole welding processing individually.

    5.It features advanced technology, reliable function, and easy operation.

    6.One of the machine heads can be used for welding processing with variable angles; it is also suitable for special shaped window welding like arch window.

    7.The 2 machine heads can be used individually, simultaneously or combinative. The four machine heads can be combined at will.

    Parameters

    Model                                 SHWA2-100x3500
    Voltage 220V/50HZ
    Air consumption 80L/min
    Profile height 20mm-100mm
    Max. profile width 120mm
    Welding size 400-3500mm
    Overall dimension 4500mm x1740mm x 1100mm
    Weight 1200KGS
