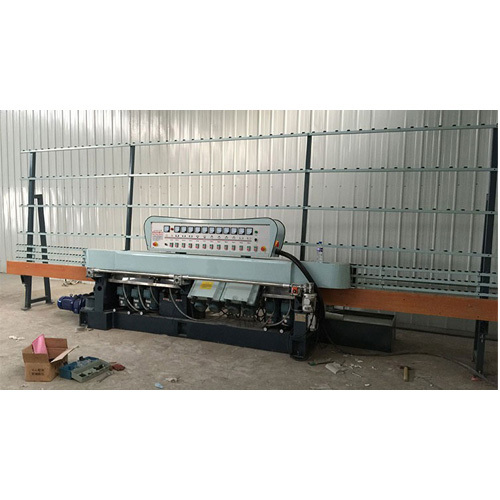

Glass Edging and Polishing Machine

Item No.: 13
1.This machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time

2.2.The flat surface after polishing is close to bright and clean degree of glass m
  • Model: SFZM9325
  • Description
    Features:

    1. This machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time.
    2. The flat surface after polishing is close to bright and clean degree of glass matrix.
    3. When adjusting different processing thickness (able to refer to data display instrument on front-axle beam),former chamfering grinding head can move simultaneously along with the front-axle beam.
    4. It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,and thereby is necessary equipment for glass deep processing.

    Parameters:


    Model

    SFZM9325
    power supply

    380V/50HZ/3P
    Power

    19.75KW
    Max.Glass Size  2440x3660mm
    Min.glass size

    80*80mm
    Glass thickness

    3-25mm
    Weight

    3000KG
    Transmission

    Stepless speed regulation
    Process speed

    0.7-7m/min
    Machine size

    7000*1200*2500mm

    Detailed Pictures:
