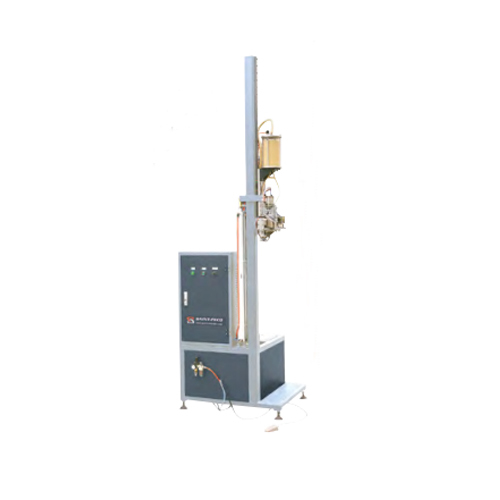

Auto Desiccant Filling Machine

1.This machine is used for filling desiccant for aluminum spacer

2.This machine can automatically drill the holes, fill the desiccant and seal the sealant
  • Model: SFG-03
  • Description

    Features



    1. This machine is used for filling desiccant into aluminum spacer

    2. Siemens PLC Control, stable and easy to handle

    3. This machine can automatically drill the holes, fill the desiccant and seal the sealant.

    4. The filling height can be adjusted according to the size of the spacer bar.

    5.Automactic feeding of desiccant.

    6.Filling time can be adjustment

    7.Automatic drilling, filling , and sealing the glue

    Parameters


    Model SFG-03
    Voltage 220V/50HZ
    Power 1.0KW
    Air Pressure 0.6-0.8Mpa
    Desiccant Diameter 0.5-0.9mm
    Filling Speed 5-6s
    Aluminum Spacer Width 6-24mm
    Dimension 1300x1100x3650mm


    Detailed Pictures:
