Features:
1. Used for window door mullion end face milling work.
2. One-time clamping can process multi-piece profiles, which increases the processing efficiency.
3. Universal milling blades can be adjusted in up/down left/right directions and not made extra to fit different processing requirements and ensure efficient working
4. Convenient tool adjustment to meet different processing requirements, need not ordering tools when processing various profiles, thus can decrease cost and save time.

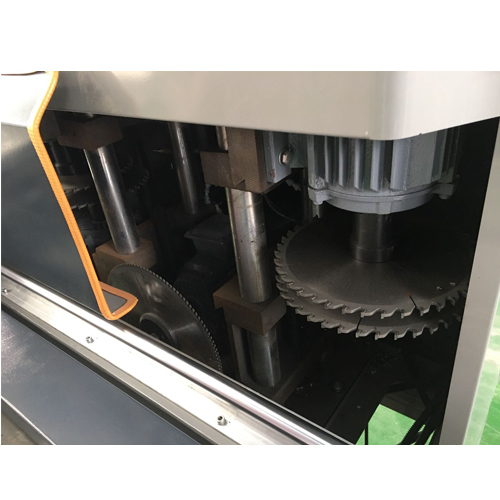

5. Large tool diameter, high milling speed, and good processing result.
6. The machine equips the horizontal and vertical positions of milling blades.
Parameters:
Model | LDXB-250W |
Voltage | 380V/50HZ |
Power | 2.2KWx3 |
Air Pressure | 0.5-0.8Mpa |
Rotary Speed | 2850rpm/min |
Diameter of Milling Cutter | 200mm |
Dimension | 1700x720x1650mm |
