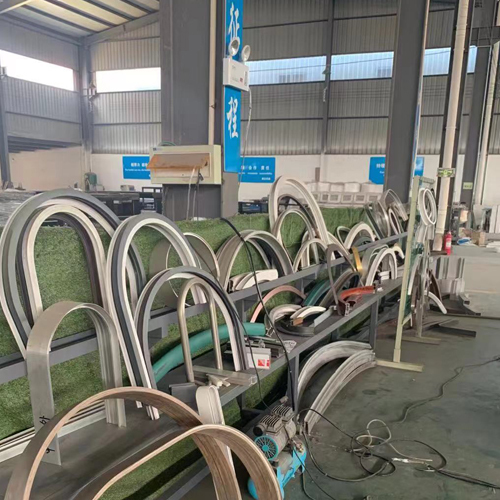

Aluminum Profile CNC Bending Machine

1. This machine is used for bending arch windows with CNC control system.
2. For normal arc can be processed at one time. It can also be multiple bents according to the real situation, effectively ensuring the arc appearance and the practicability of th
Description Review
Description
Features:

1. In special-shaped arc processing, multi-radius bending can be formed at one time (multi-curvature), which can effectively improve processing efficiency and save labor.

2. For normal arc can be processed at one time. It can also be multiple bents according to the real situation, effectively ensuring the arc appearance and the practicability of the equipment.

3. With an imported hydraulic system, the positioning accuracy of the working shaft is less than 0.01 mm under 20 tons of pressure.

4. Accurate radius (R) control and easy to complete the continuous processing of multi-arc and complex graphics.

5. Grating ruler: Double-drive grating ruler with anti-interference module ensure good repeatability of arc bending.

6. X-axis rotation is controlled by direct-connected motor: high positioning accuracy, constant torque, not change frequently due to the speed.

7. The CNC control system can completely solve the smoothness and symmetry in different curvature transition.

8. The humanized control system, flexible, easy to understand, fewer requirements for workers.

9. Exquisite die design technology perfectly solves a problem like a wrinkle, scratch, distortion, etc. to achieve a high-quality finished product.

10. Unique core algorithm, rich rolling settings, easy operation and practicality.

11. The automatic calculation, reduces your material waste.

12. Main machine parts use Siemens, Schneider world’s famous brand.

Parameter:

Roller rotary speed  0-15RPM
Maximum Diameter of Roller Die 300mm (11.811 in)
Material of Roller Die Chromium, 12 Molybdenum, Vanadium, Nylon
Rollers Diameter 65mm(can be customized) Heat treatment
Fixed centre distance 350-750mm (13.7795 in - 29.5275 in)
Y-Axis Cylinder Thrust 20T
Positioning accuracy of Y-axis cylinder 0.01mm
Maximum Torque of X-axis and Y-axis 2300N·M
Y-axis feed stroke 0-220mm (0 - 8.6614 in)
Profile Height and Width 200mm*250mm (5.9055 in * 5.9055 in)
Min Radius 100mm (3.937 in)
Power  6KW
Working voltage 380VAC/50HZ 3 PHASE
Dimension (L*W*H) 1500x1000x1550mm
Weight of machine 1200Kg
